Tuesday, May 16, 2017

Launch X431 V 8.0 inch Software Downloading failed Solution

Launch X431 V 8.0 diagnostic scan tool one car Software (Notice : Downloading failed) solution.


Q: I have download 82 car brand software from Launch X431 v 8"  official website, but when i try to download the final Renault software, it failed to download, and notes Downloading failed

A:
1; Re-start the tablet to download the last software again
2; Change other network connection

If you cannot register or login X431 V 8.0, try the solution above as well.
100% working.

Launch X431 V 8 inch Software List
http://launch-x431-v-8-inch.blogspot.com/2017/03/launch-x431-v-8-tablet-software-list.html

Monday, May 15, 2017

Launch X431 V 8.0 Network is not available when login soluiton

Q: I try to login Launch X431 V 8.0 inch diagnostic scanner with user name and password, but it failed me, gave me error "Currently the network is not available"

How to solve?
x431-v-8-inch-login-error

Solution:
turn off the internet, then connect with the internet again, the problem will be solved.

Thursday, May 11, 2017

Launch X431 Diagun IV Diagnostic Scanner User Manual

Launch X431 Diagun VI Bluetooth wireless OBD diagnostic scan tool has newly rolled out to replace Diagun III. What’s the difference between Diagun 3 and diagun IV?
Diagun II vs. Diagun III
diagun-ii-vs-diagun-iii
Diagun III vs. Diagun IV
ItemDiagun III Diagun 3Launch X431 Diagun IV Diagun 4
Main unit Image diagun-3 diagun-vi
Bluetooth DBscar Connector diagun3-bluetooth-connector diagun-vci-bluetooth-connector
Operating SystemWIN CE 5.0Android 7.0
Processor400 MHz ARM9Quad core 1.1 GHz
Memory1G TF Card 1GB (Expandable up to 32GB)
Storage1GB16GB (Expandable up to 64GB)
LCD Screen194X86X33MM, 4.3-inch LCD with touch screen 5.5 inch IPS screen with a resolution of 1280 x 720 pixels
Battery3800 mAh2500mh rechargeable polymer lithium battery
Offical Websitewww.dbscar.comwww.dbscar.com
LanguageEnglish, Spanish, French, German, Japanese, Korean, Russian,ArabicEnglish, German, Japanese, Russian, French, Spanish, Russian, Arabic ,Korean Traditional Chinese…
Update1 Year Free Upgrade2 Year Free Update Online
Bluetooththeoretically 100m, suggest 15-20mBluetooth 4.1.
10M (Without Obstacle)
WiFiUSBWi-Fi: WLAN 802.11b/g/n
FuntionFull diagnosis (Read/erase DTCs, display live data stream etc)Full-diagnosis, Oil Reset Service
Steering Angle Calibration
Electronic Parking Brake Reset
Battery Register / Battery Maintenance
ABS Bleeding
Electronic Throttle Position Reset / Learn
Diesel Particulate Filter (DPF) Regeneration
Tire Pressure Monitor System Reset
(Note: some China cars have Speicial Functions)
Vehicle/Car ListSoftware: Demo,Smart OBDII
America: Ford,
Chrysler,
GM,Acura,
INFINITI,
Lexus
Australia: Ford
Brazil: GM,
Fiat
China:  Brilliance,
BYD,
Changan,
ChangCheng,
Changhe,
Chery,GEELY,
Gonow,HaFei,
JAC,Jiangling,
SGMW,Tianjin
FAW,Weili,
Xiamen Golden,
XinKai,
ZhongShun,
Zhongxing,
ZOTYE
Europe: Audi,
Benz,BMW,
Citroen,
Dacia,
Ford,Fiat,
Jaguar,
Lancia,
Landrover,
Opel,
Peugeot,
Porsche,
Renault,
Romeo,
Rover,
Saab,
Seat,
Skoda,
Smart,
Transporter&
V-Class,
Volkswagen,
Volvo
Japan:
Daihatsu,
Honda,
JPIsuzu,
Mazda,
Mitsubishi,
Nissan,
Subaru,
Suzuki,
Toyota
Russia: GAZ,
VAZ
Korea: Kia,
Ssangyong,
Hyundai,
Daewoo
          Abarth Acura
·         Alfa Romeo
·         Audi
·         Bentley
·         BMW
·         Buick
·         Cadillac
·         Chevrolet
·         Chrysler
·         Citroen
·         Dacia
·         Daewoo
·         Daihatsu
·         Dodge
·         Fiat
·         Ford
·         GAZ
·         Geely
·         GMC
·         Goinggreen
·         Greatwall
·         Holden
·         Honda
·         Hyundai
·         Infiniti
·         Isuzu
·         Jaguar
·         Jeep
·         Lancia
·         Land Rover
·         Lexus
·         Mazda
·         Mercedes-Benz
·         Mini
·         Mitsubishi
·         Nissan
·         Opel
·         Perodua
·         Peugeot
·         Range Rover
·         Renault
·         Saab
·         Seat
·         Skoda
·         Smart
·         Ssangyong
·         Subaru
·         Suzuki
·         Tata
·         Toyota
·         Vauxhall
·         VAZ
·         Volvo

Other Cable9 pcsNon-16 pin cable
PrinterBuy SO118 PinterBuy SO118 X431 Pinter
PriceUS$ 639US$ 799



How to Connect/Disconnect Diagun IV WiFi?

Wi-Fi Setting
Note: If you don’t need to use Wi-Fi for a while, you can turn it off to conserve battery life.

X-431 Diagun IV has built-in Wi-Fi that can be used to get online. Once you’re online, you can register your X-431 Diagun IV, surf the Internet, get apps, send email, launch the remote diagnosis, and check for software updates etc.
Connect to a Wi-Fi network
  1. On the home screen, tap Settings -> WLAN.
  2. Slide the Wi-Fi switch to ON, X-431 Diagun IV will start searching for available wireless networks.
  3. Select a wireless network, y If the chosen network is open, X-431 Diagun IV will connect automatically; y If the selected network is encrypted, a network password will need to be entered. 4. When “Connected” appears, it indicates the Wi-Fi connection is complete.
Note: When Wi-Fi is not required, this should be disabled to conserve battery power. Once it is connected successfully, tap the Wi-Fi network from the list to view its name, link speed, security type, IP address etc. When this tool is in range, it will connect to the previously linked network automatically.

Disconnect from a Wi-Fi network
  1. On the home screen, tap Settings -> WLAN.
  2. Tap the network with a Connected status, then tap “Disconnect”.

How to register and activate Launch X431 Diagun IV?

User registration
Tap “Login” on the upper right corner of the main menu screen:
login-diagun-vi
  1. If you are a new user, tap “New Registration”. See Fig.2
new-registration
Note: To obtain better service, you need to provide real information.
A. Create App account: In Fig. 3, fill in the information in each field and then tap “Register”, a screen similar to the following will appear:
register-3
B. Activate the VCI connector: In Fig. 4, input the Serial Number and Activation Code, which can be found in the password envelope.
activation-code
Note: To exit and activate it later, tap “Skip”. In this case, you can activate your connector by tapping “Activate Connector” in “Personal Center”.

 Activate Connector.
C. Download diagnostic software: Tap “Activate”, a dialog box similar to Fig. 5 will appear:
download-software
To download the diagnostic software, tap “Yes” to enter the software download page. Tap “No” to download it later. On the download page, tap “Update” to start downloading. It may take several minutes to finish it, please be patient to wait. To pause downloading, tap “Pause”. To resume it, tap “Continue”. Once download is complete, the system will install the software package automatically.

  1. If you have registered to be a member, input your name and password, and then tap the “Login” button to enter the main menu screen directly.
Note: X-431 Diagun IV has an auto-save function. Once the username and password are correctly entered, the system will automatically store it. Next time you login the system, you will not be asked to input the account manually.

  1. If you forgot the password, tap “Retrieve Password”, and then follow the on-screen instructions to retrieve it.
Retrieve-Password

How to set up X431 Diagun IV Bluetooth?

Bluetooth Setting
Enter X-431 Diagun IV Bluetooth setting screen (“Settings” -> “Bluetooth”), slide the Bluetooth switch to ON and X-431 Diagun IV will start searching available Bluetooth device, tap the desired connector to pair. By default, the Bluetooth name is 98729*****00 (where ***** stands for 5 digits.).
Note: In case no Bluetooth setting is done before diagnostic software is launched, you can also configure it while using the software.
blog.obdii365.com

Sunday, April 9, 2017

Launch X431 V 8" Mercedes-Benz Software Special Function List

Besides full diagnosis function on Mercedes, Launch X431 V 8" pad diagnostic scanner Mercedes software supports following special functions as well:

Brake pad reset

ABS bleeding

Electronic throttle sensor reset

Tire pressure sensor reset

PDF (diesel particulate filter) regeneration

Learning processes

Correction programming (Odometer correction)
launch-x431-v-8-inch-mercedes-software-1

launch-x431-v-8-inch-mercedes-software-2

Launch X431 V 8" Ford 2017 Software Support F-650 F-750

Launch X431 V 8 inch tablet diagnostic scanner Ford software update to 2017.


Support Ford medium-duty truck F-650 F-750 (no many tool on the aftermarket can do these pickup models) and special functions/module programming.


Special functions and module programming

ACM (Audio Control Module)

CDP (Compact Disc Player)

Launch X431 V 8" Honda Software Special Function List

Launch X431 V 8 inch tablet diagnostic scan tool Honda software supported special functions list:


Write VIN,replace ECM/PCM

Crank CKP Pattern Clear

Crank CKP Pattern learning

Throttle learning

Motor Rotor Position Calibration (IMA)

Readiness codes

Actuation test

Friday, March 24, 2017

6 Things make Launch X431 V 8 inch better than old X431 V/V+

Launch X431 V 8 inch tablet diagnostic scanner stands out from x431 V pro 7 inch, Launch X431 PAD II,X-431 V+ Pro in following aspects.

Let’s go and check it out:

1. X-431 V 8″ has wider vehicle coverage.

Adds Brazilian (Fiat, GM etc), Indian (MAHINDRA,MARUTI,TATA), Chinese, AU (Ford,Holden), and Malay (PROTON,PERODUA(PERODUA)) cars, that other X431 does not have.
x431-v-car-list-1
x431-v-car-list-2
x431-v-car-list-3
(Full X431 V 8 inch car brand list, please check here)

2.  It comes with various special functions that other X431 do not support:

Brake reset, oil reset, SRS reset, Battery reset, ABS bleeding,Electronic throttle relearn,
TPMS reset, PDF regeneration, Gear learning, IMMO key programming.
x431-v-special-function

3. Cover newer vehicle till 2017.

i.e support BMW model up to 2017
BMW coding and programming function are available,clean menu makes it easier operate than BMW dealer level software BMW ICOM ISTA.
And the biggest advantage is that X-431 V 8″ Pad supports basic BMW key programming function as well. This is an innovative idea.
so Launch X431 V 8 inch=BMW diagnostic+coding+ key programming 3-in-1 device.

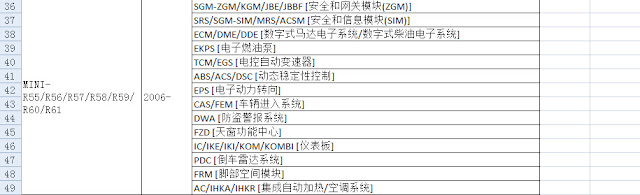

x431-v-bmw-special-function-1
x431-v-bmw-special-function-coding-2
x431-v-bmw-special-function-3
x431-v-bmw-special-function-coding-4
x431-v-bmw-special-function-5
x431-v-bmw-special-function-progamming

x431-v-bmw-special-function-programming-6

4. Launch X431 V 8inch Supports Toyota till 2017.

Toyota software comes with special functions, i.e registration electric throttle learning,oil reset, actuation test and write VIN etc
x431-v-toyota-special-function-1
x431-v-toyota-special-function-2
x431-v-toyota-special-function-3
x431-v-toyota-special-function-4
x431-v-toyota-special-function-5

5. X431 V developed VW online programming function

And you not need to connect to German server. X431 V provides dealer level VW diagnosis as ODIS.
Function under VW menu:
Special function
VW crafter (LT3) light truck
Guided function
Online programming
x431-v-online-programming-1
x431-v-online-programming-2

6. Support 2 year free update online.

old X431 support only 1 year free update. As we all known, Launch X431 tool upgrade is not cheap, but extend update year to 2 year will save you almost another machine.
